An automated immersion ultrasonic testing system for inspecting cylindrical workpieces such as shafts and disc-type components (e.g., turbine discs, rotors, flywheels) made of carbon and high-alloy steels, using pulse-echo and mirror-shadow inspection methods. The system ensures high productivity and objectivity of testing through full automation of the process, minimizing the influence of the human factor and significantly improving the reliability and repeatability of results.
Inspection objects:
Rotationally symmetrical components such as shafts, discs, rings, and journals.
Small and large-sized disc-shaped workpieces (rotors, turbine discs, flywheels, flanges).
Specifications:
Product diameter: from 50 to 1500 mm
Maximum weight: up to 1200 kg
Types of defects
Inspection scenario
System components
Specification
Video
Types of defects
Detectable Defect Types 100% VOLUME INSPECTION OF THE WORKPIECE:
Cavities / Porosity
Cracks
Sponginess
Foreign Inclusions
Flakes (Hydrogen Flakes)
Inspection scenario

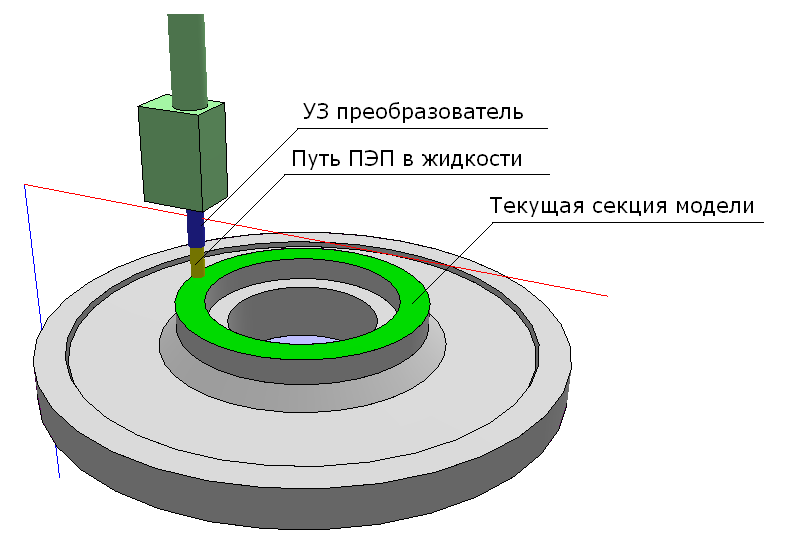

The system consists of an immersion tank with a faceplate for mounting the component under test and a multi-axis scanner equipped with servo drives and precision mechanics, ensuring fast and accurate movement of the inspection unit with the ultrasonic transducer. Scanning is performed along a complex trajectory programmed in the software according to the customer's specific testing procedure. Upon customer request, the immersion tank can be equipped with a lifting platform to facilitate the loading and unloading of workpieces.
System components
Frame
Rotation Drive
Clamping Unit
Lifting Platform
Inspection Unit / Scanner
Water Preparation System
Servo Drive Control System
Ultrasonic Flaw Detector
Software
Lifting Mechanism (Option)
Manipulator for Mounting the Test Object (Option)
Specification
UKD-400 Automated system for testing discs up to Ø400 mm Rotation Speed (Spindle Table) 1 to 50 rpm Outer Diameter (Workpiece) 50...400 mm Height (Workpiece) 30...170 mm Max. Weight (Workpiece) up to 400 kg
UKD-600 Automated system for testing discs up to Ø600 mm Rotation Speed (Spindle Table) 1 to 50 rpm Outer Diameter (Workpiece) 50...600 mm Height (Workpiece) 30...170 mm Max. Weight (Workpiece) up to 300 kg
UKD-3M Automated system for testing discs up to Ø800 mm Rotation Speed (Spindle Table) 1 to 50 rpm Outer Diameter (Workpiece) 150...800 mm Height (Workpiece) 30...150 mm Max. Weight (Workpiece) up to 300 kg
UKD-1000 Automated system for testing discs up to Ø1000 mm Rotation Speed (Spindle Table) 1 to 50 rpm Outer Diameter (Workpiece) 150...1000 mm Height (Workpiece) 30...650 mm Max. Weight (Workpiece) up to 1000 kg
UKD-1200 Automated system for testing discs up to Ø1200 mm Rotation Speed (Spindle Table) 1 to 50 rpm Outer Diameter (Workpiece) 150...1000 mm Height (Workpiece) 30...300 mm Max. Weight (Workpiece) up to 1200 kg
