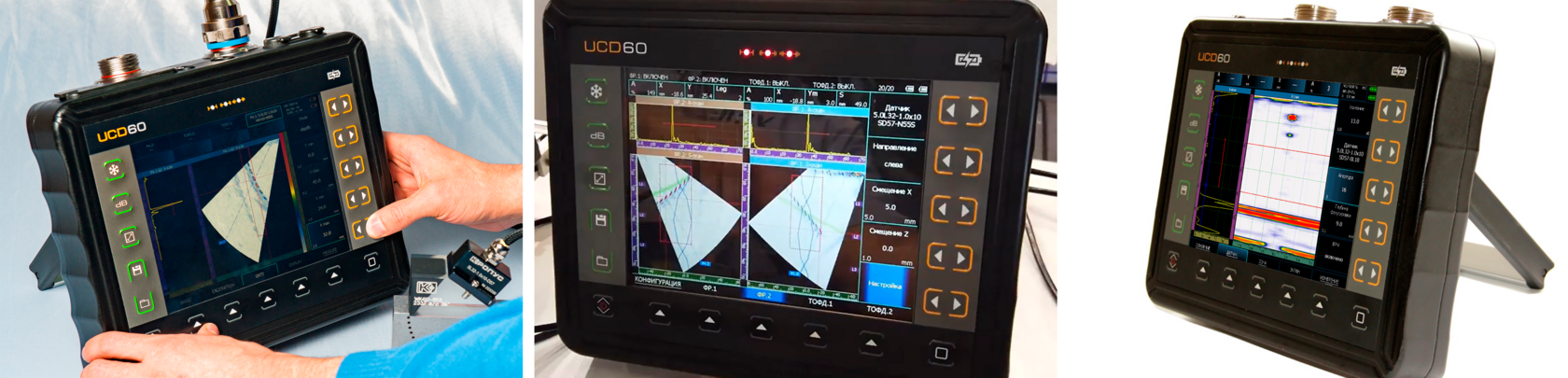

Lightweight yet powerful solution combining PA and TOFD technologies for automated, mechanical, and manual UT inspections with unmatched performance and reliability at affordable price. UCD60 PA 16:128 combines Phased Array (PA) and Time-of-Flight Diffraction (TOFD) technologies for superior defect detection, weld inspection, and corrosion mapping. Designed for automated (AUT), mechanical (MAUT), and manual UT inspections, this lightweight yet powerful device delivers unmatched speed, accuracy, and versatility in industrial NDT applications.
1. Dual Phased Array Operation for Maximum Detectability
2. Multiple Inspection Modes for Diverse Applications
3. Advanced Imaging & Data Analysis
4. Smart Weld Inspection Tools
5. High-Speed Data Acquisition & Recording
6. Rugged & Field-Ready Design
Operation with scanners
Technical Specifications
Video materials
1. Dual Phased Array Operation for Maximum Detectability
• Simultaneous operation with two 64-element PA probes for two-sided weld inspection • 100 Hz S-scan generation speed enables high-speed scanning (6-9 m/min) without compromising data quality • Real-time focusing with 1024 focusing laws for precise beam steering
2. Multiple Inspection Modes for Diverse Applications
• PA Mode: Advanced phased array scanning for weld inspection • 2PA + 2TOFD Mode: Simultaneous dual-probe operation with TOFD for comprehensive defect analysis • Conventional UT Mode: Traditional A-scan, B-scan, and TOFD for legacy inspections • i-Scan Mode: Corrosion mapping and composite material inspection
3. Advanced Imaging & Data Analysis

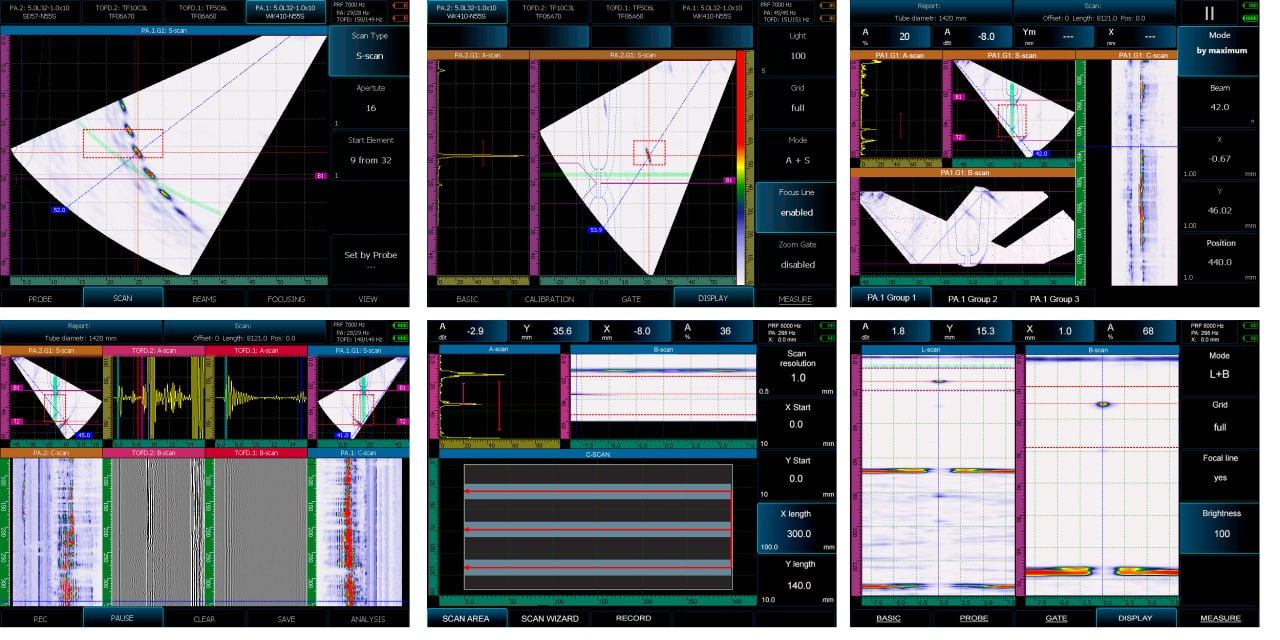

• Multiple viewing modes: — S-scan (Sectorial scan) – Real-time angle sweeps — L-scan (Linear scan) – Fixed-angle inspection — LS-scan (Compound scan) – Combines S-scan with aperture movement — A-, B-, C-scans – Full defect visualization • True beam path visualization for accurate defect location and sizing • Full-screen mode for enhanced signal detailing
4. Smart Weld Inspection Tools

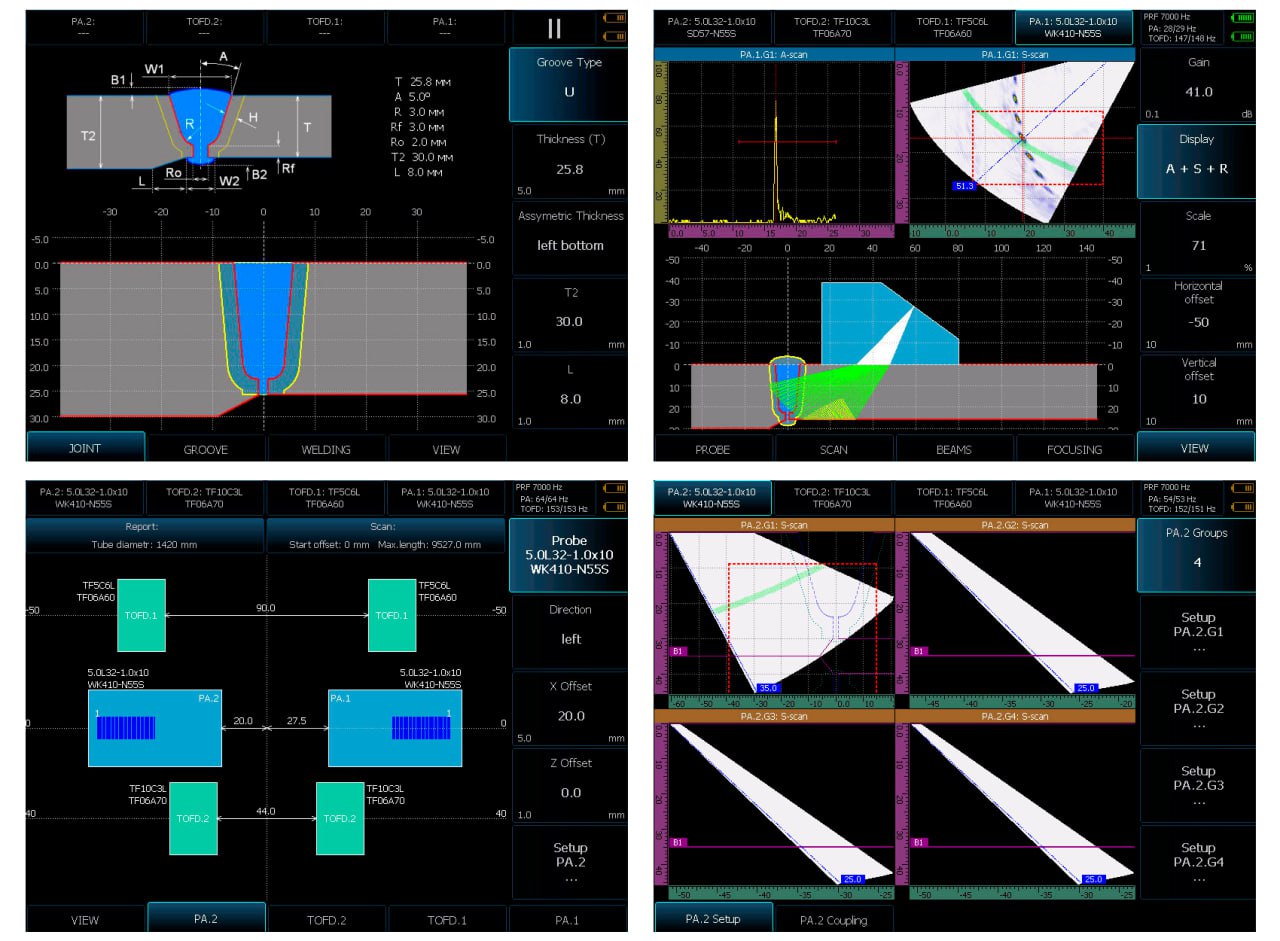

✔ Weld Wizard – Predefined weld profiles with real geometry simulation (root height, HAZ, thickness variations) ✔ Multigroup Function – Split each PA probe into 4 independent groups with customized focus zones ✔ Angle Correction Gain (ACG) & Time Correction Gain (TCG) – Precise defect sizing ✔ Scan Plan Wizard – Visual beam path planning for optimal coverage
5. High-Speed Data Acquisition & Recording
• Digital recording of every A-scan signal • Encoder-based scanning for precise defect positioning • 300 MB file capacity with USB & Ethernet data transfer • On-the-fly analysis before file saving

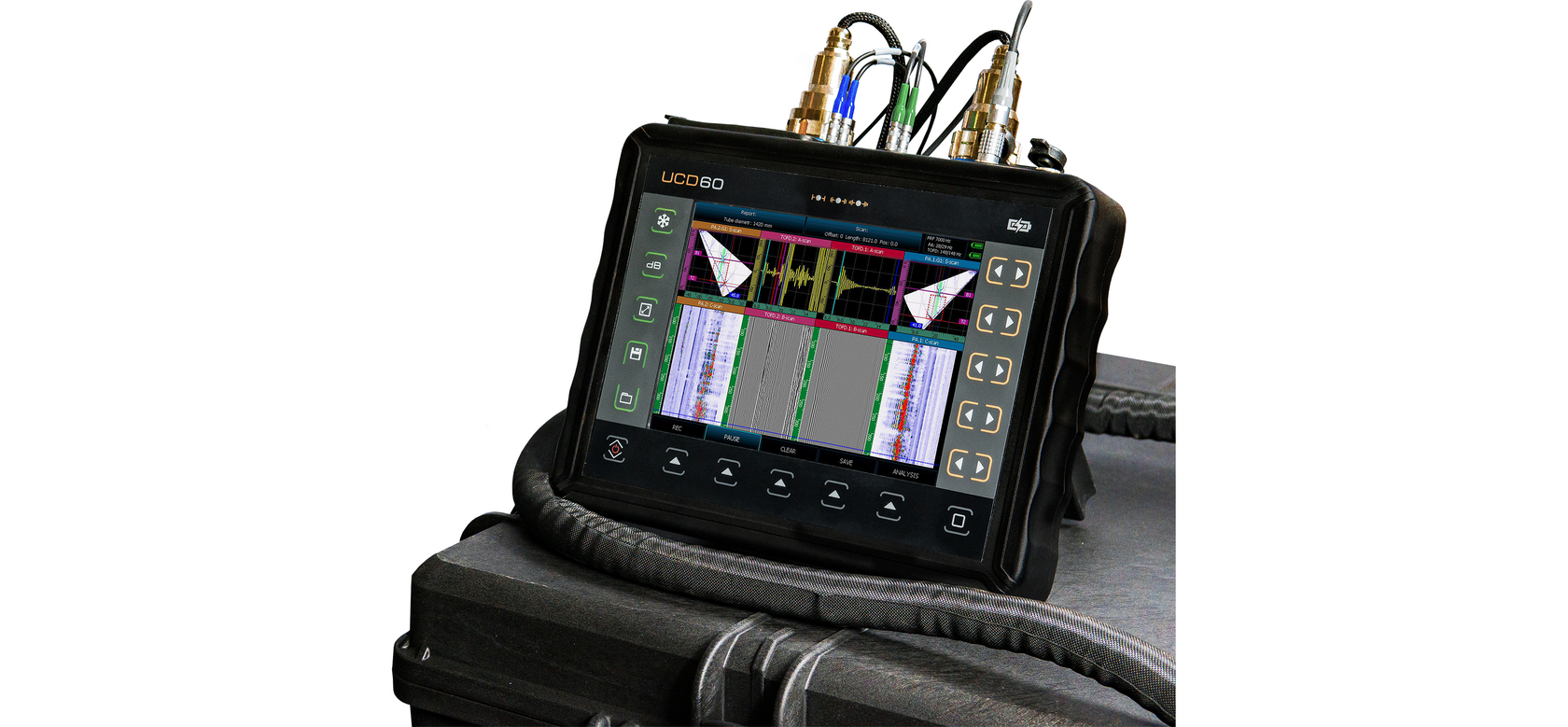

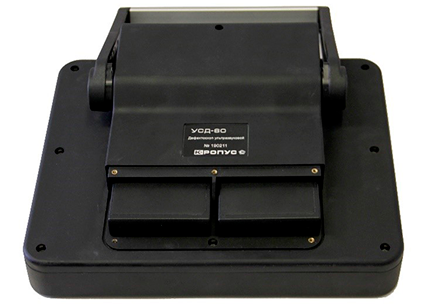

6. Rugged & Field-Ready Design
• Ultra-lightweight (2.5 kg) for easy portability • 10+ hours battery life with hot-swap capability • High-brightness TFT display (800×600 px) for visibility in sunlight • Wide temperature range (-35°C to +50°C) for harsh environments

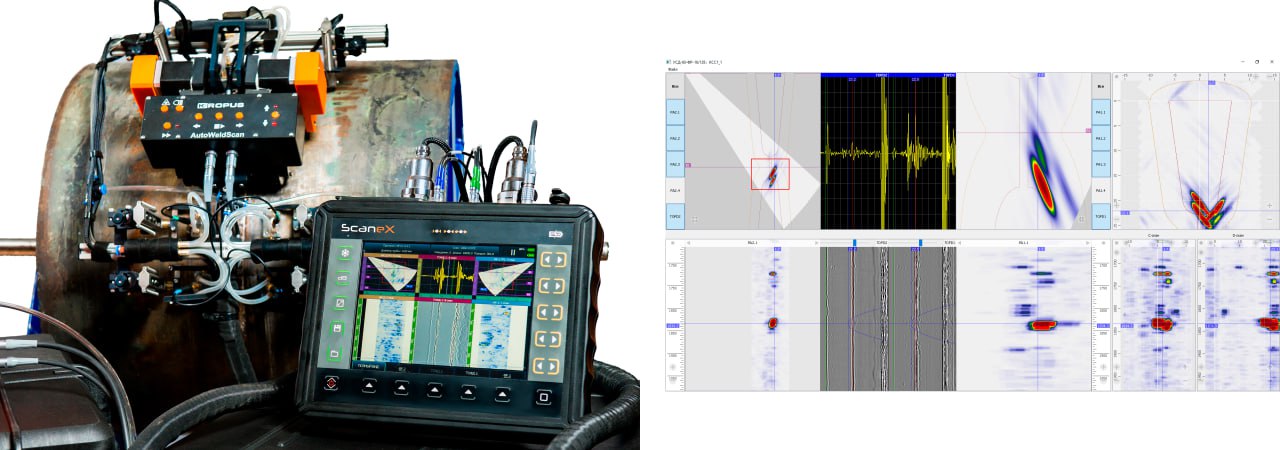

Operation with scanners
→AutoWeldScan — Fully automated girth weld scanner (3.5 kg) → AutoPAScan – Motorized scanner for one-side or two-side weld inspection → RollScan – Rolling probe for composite and corrosion inspection → Third-party scanners (with compatible interfaces)
Technical Specifications
PHASED ARRAY Generator Configuration: 16:128 Excitation Voltage: ±100 V Excitation Pulse Type: RF Pulse Synchronization: Position or time encoder Gain: 0-80 dB in 0.1 dB steps Operating Frequency Range: 500 kHz – 20 MHz Sampling Frequency: 100 MHz ADC Bit Depth: 10 bits Data Bit Depth: 16 bits Signal Recording: Digital recording of each signal Max A-Scan Length: Up to 10,000 points Pulse Repetition Frequency: 10 kHz Focusing Laws: Up to 1024 Sensitivity Equalization: 2D programmable by angle (ACG); by depth TCG (range of 60 dB, 32 points with a slope of up to 50 dB/μs) Focusing Types: Depth, path, distance, auto Scan Types: S-Scan, Real weld geometry (B-Scan), C-Scan, Top and side views Scanning Modes: S-Scan, L-Scan, Compound LS-Scan (compound S-Scan) Multi Groups: Up to 10 groups (up to 4 on each PA channel + 2 TOFD channels) Cursors: Cartesian system, 2D, polar Measurement: Distance along the beam, coordinates in depth and position (X, Y), maximum in 2D, equivalent area Post-Processing on PC: Analysis, 3D volume analysis, scaling, protocol output Connectors: 2 x Amphenol D38999
Conventional UT CHANNELS Number of Channels: 4 channels (2 pulsers / 2 receivers) Excitation Voltage: ±200 V Sampling: 100 MHz Processing: A-Scan, B-Scan, TOFD Rectification FW, HW+, HW–, and RF Gain: 0-110 dB in steps of 0.1, 0.5, 1, 2, and 6 dB Operating Frequency Range: 500 kHz – 20 MHz Connectors: 4 x Lemo 000
GENERAL FEATURES Data Storage: Standard USB card or high-speed Ethernet 10/100 Mbps USB Ports: 2 USB + hub with 5 additional ports File Size: 300 MB Standard Scanning Speed: 6-9 m/min Scan Record Length: 5000 measurements Operation modes: phased array, conventional UT, i-Scan for corrosion mapping and composite inspection. Display: 800x600 pixels, 8.5 inches, color TFT with background change function for contrast work in bright sunlight Battery: 2 built-in batteries, with quick replacement, up to 12 hours of autonomous operation External Power: 220 V AC power supply Operating Temperature Range: -35°C to +50°C Size (H x W x D): 280 mm x 245 mm x 100 mm Weight: 2.5 kg with battery Operating temperature –50 °C to 60 °C
