UCD60 PA
Phased Array Ultrasonic Flaw Detector with TFM Technology
Download brochure → ––––––––– Request a quote →
The UCD 60 PA is an advanced phased array ultrasonic flaw detector featuring Total Focusing Method (TFM) technology, delivering superior image resolution and defect detection accuracy in a lightweight, rugged design. Ideal for manual and mechanized inspections, this device combines ease of use with advanced capabilities, making it perfect for weld inspection, corrosion mapping, and composite testing.
Download brochure → ––––––––– Request a quote →
The UCD 60 PA is an advanced phased array ultrasonic flaw detector featuring Total Focusing Method (TFM) technology, delivering superior image resolution and defect detection accuracy in a lightweight, rugged design. Ideal for manual and mechanized inspections, this device combines ease of use with advanced capabilities, making it perfect for weld inspection, corrosion mapping, and composite testing.
✔ 16-element phased array with performance comparable to 32- and 64-element probes
✔ Sensitivity alignment (ACG & TCG) for precise defect sizing
✔ High-contrast TFT display (640×480 px) – visible even in bright sunlight
✔ 10+ hours battery life – ideal for extended field inspections

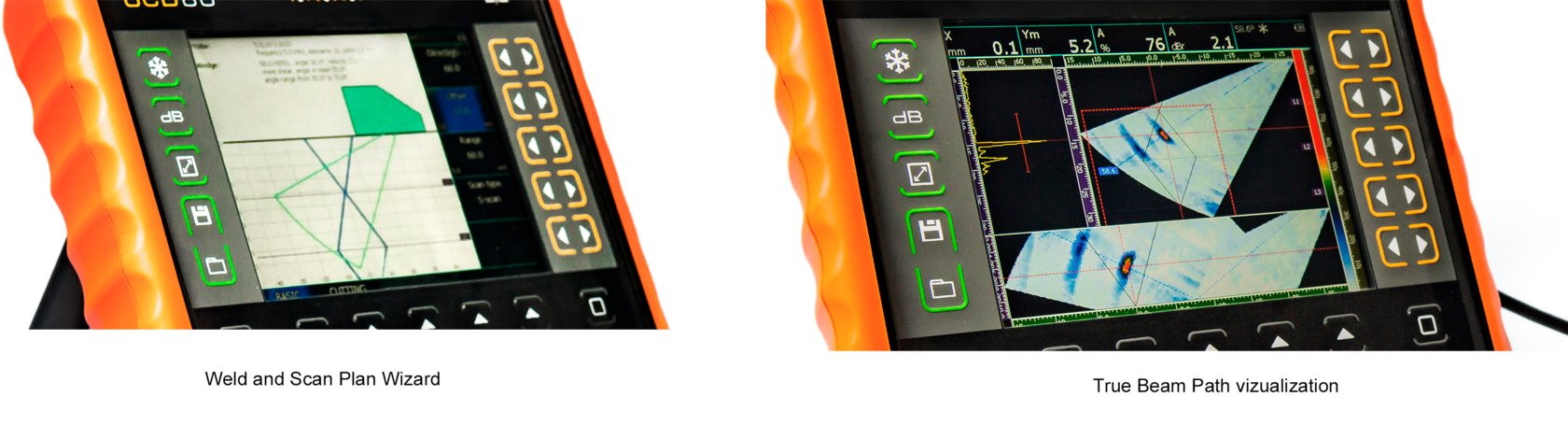

✔ Scan Plan Wizard – Visual beam path planning for optimal coverage
✔ True beam path calculation – Accounts for wedge geometry for precise defect location
✔ B-Scan & C-Scan recording – Supports encoder-based scanning
- Phased Array (PA) Mode
- Conventional UT Mode
- TFM + A-scan in each position
- B-scan with weld geometry overlay
- Full-screen zoom for detailed signal analysis
✔ Built-in DAC, DGS curves for defect evaluation
✔ AWS D1.1 standard support – Automatic D1.1 Ratio calculation
Feature — Specification
PA Configuration: 16-element (4/8/16 active elements)
TFM Algorithm: Yes (Total Focusing Method)
Scanning Modes: S-scan, L-scan, TFM, B-scan, TOFD
Frequency Range: 0.1 – 20 MHz
Gain Adjustment: Up to 100 dB
TCG/ACG Correction: Yes (70 dB range, 12 dB/µs)
Max Scanning Depth: 3000 mm (echo), 6000 mm (shadow)
Display: 640×480 px TFT (sunlight-readable)
Battery Life: 10+ hours (Li-Ion 5000 mAh)
Operating Temp.: -30°C to +55°C
Weight: 1.4 kg (ultra-lightweight)
PA Configuration: 16-element (4/8/16 active elements)
TFM Algorithm: Yes (Total Focusing Method)
Scanning Modes: S-scan, L-scan, TFM, B-scan, TOFD
Frequency Range: 0.1 – 20 MHz
Gain Adjustment: Up to 100 dB
TCG/ACG Correction: Yes (70 dB range, 12 dB/µs)
Max Scanning Depth: 3000 mm (echo), 6000 mm (shadow)
Display: 640×480 px TFT (sunlight-readable)
Battery Life: 10+ hours (Li-Ion 5000 mAh)
Operating Temp.: -30°C to +55°C
Weight: 1.4 kg (ultra-lightweight)
- AutoPAScan – For 1 PA or 2 TOFD probes
- PAScan2 – For 1 PA
- TOFD scanners
- Mini
2D Encoder Input – Enables B-scan & C-scan recording
Third-party scanners (with compatible interfaces) can also be connected
✅ High-resolution TFM imaging for superior defect detection
✅ Ultra-lightweight (1.4 kg) – Easy to carry for field inspections
✅ Smart wizards (Weld Wizard, Scan Plan) for faster setup
✅ Multi-mode operation (PA, Conventional UT, TOFD, i-Scan)
✅ Rugged IP65 design – Built for harsh environments
✅ Ultra-lightweight (1.4 kg) – Easy to carry for field inspections
✅ Smart wizards (Weld Wizard, Scan Plan) for faster setup
✅ Multi-mode operation (PA, Conventional UT, TOFD, i-Scan)
✅ Rugged IP65 design – Built for harsh environments
