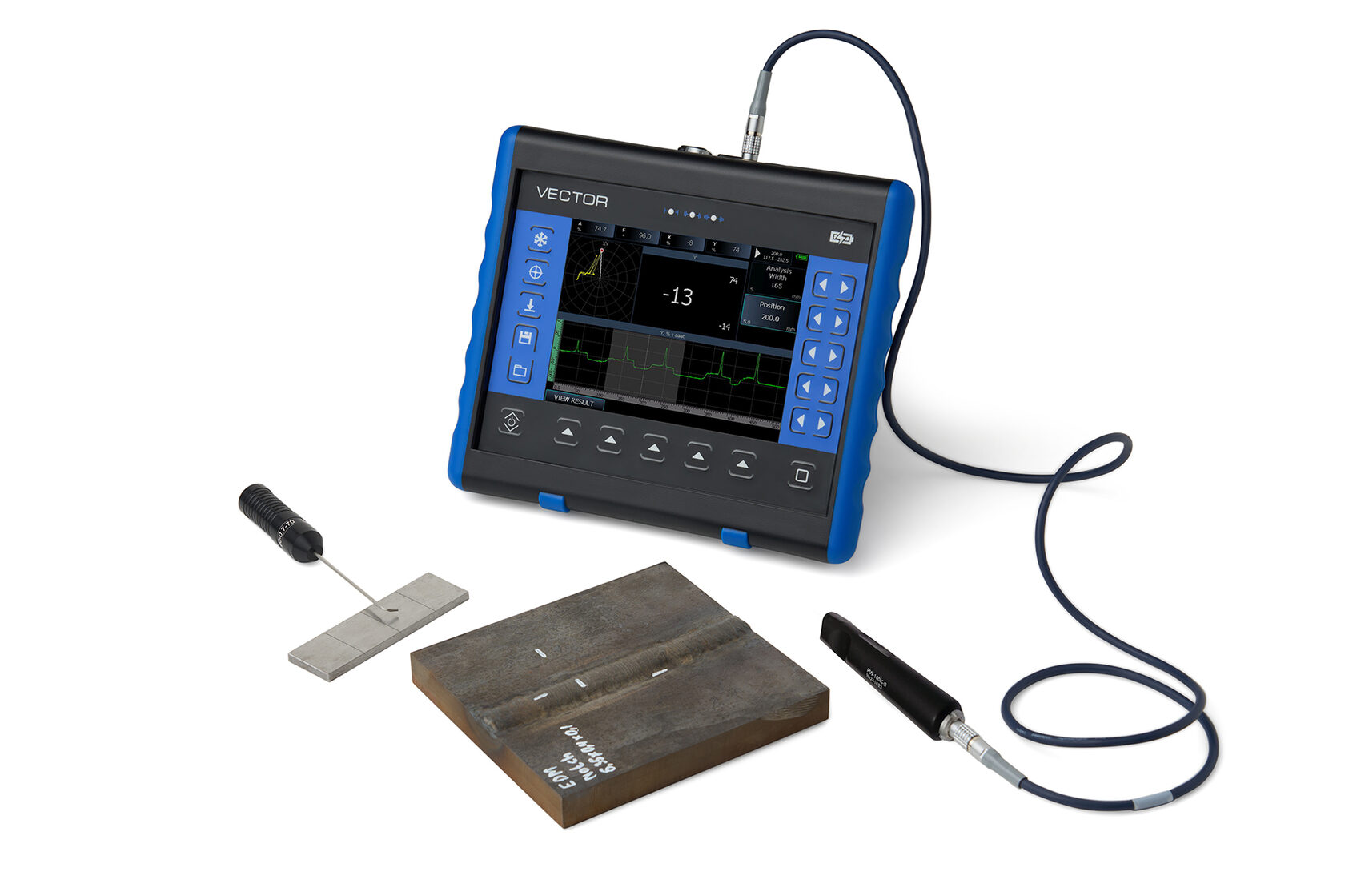

The VECTOR 50 is a cutting-edge portable eddy current flaw detector combining wide frequency range (10Hz–20MHz) with unmatched sensitivity for detecting surface and subsurface defects. Designed for field and plant inspections, it delivers lab-quality results for aerospace, energy, and manufacturing NDT with ultra-lightweight (1.5kg) portability.
1. Unparalleled Detection Capabilities
2. Smart Field Operation
3. Advanced Signal Processing
4. Universal Probe Compatibility
Technical Specifications
Video materials
Configuration Packages
Why Choose VECTOR 50?
Complete Standard Package Includes
1. Unparalleled Detection Capabilities

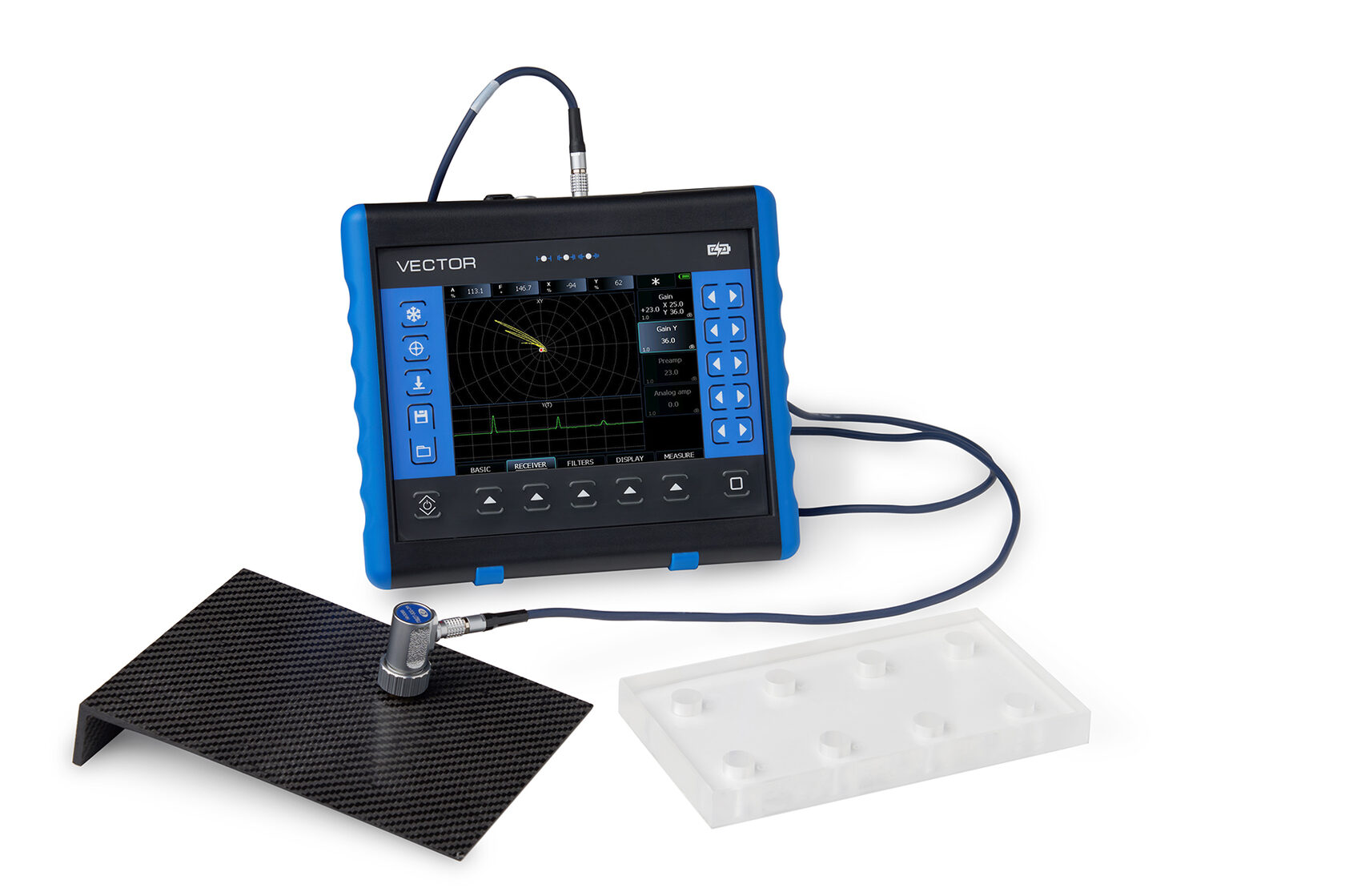

✔ 10Hz–20MHz frequency range – Covers all conductive materials from carbon fiber to ferromagnetic alloys ✔ Defects under 25mm insulation – Detects corrosion, cracks, and laminations without coating removal ✔ Multi-parameter analysis – Measures crack depth, conductivity, coating thickness, and ferritic content
2. Smart Field Operation

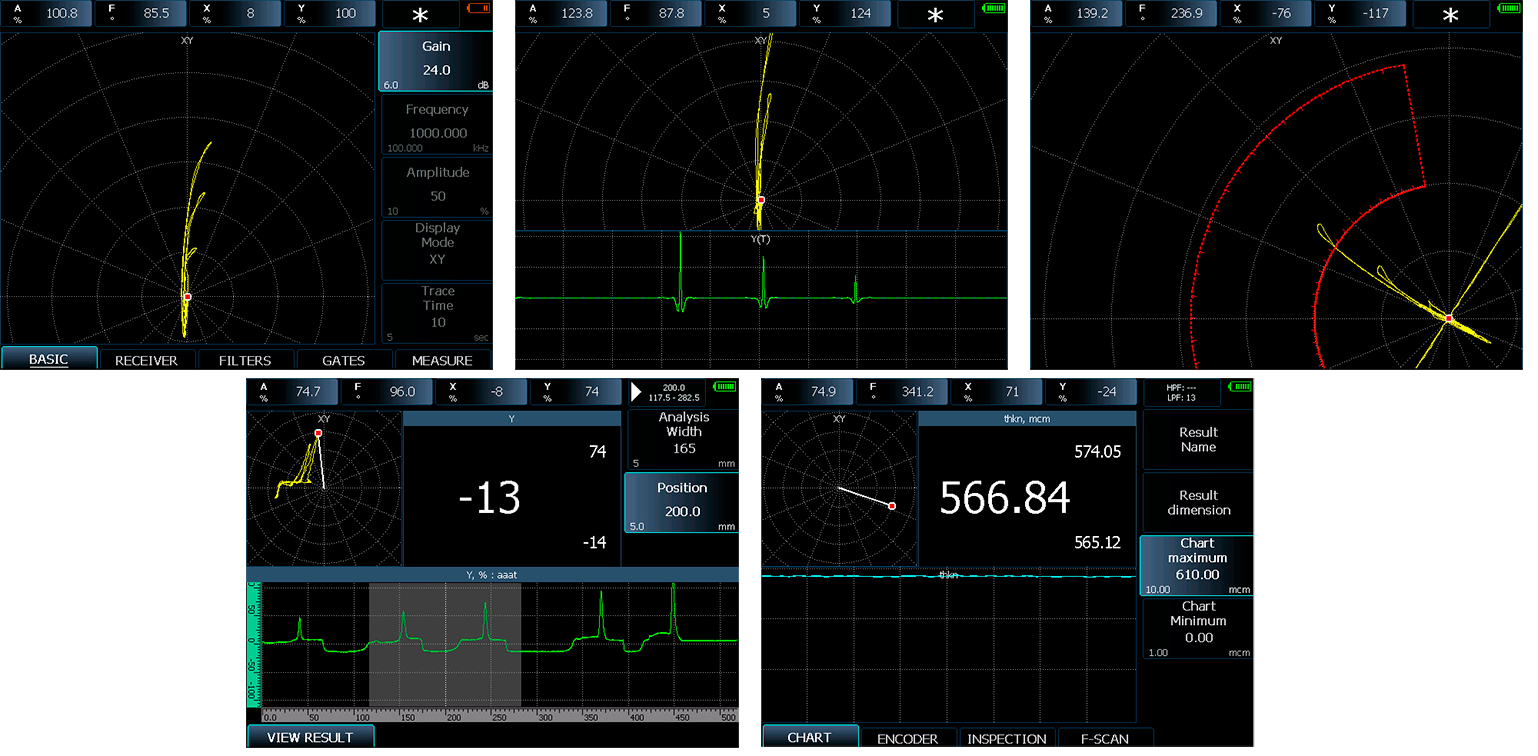

✔ 8-hour battery life – Hot-swappable for continuous shifts ✔ Encoder-compatible – Enables position-based scanning for pipelines and large surfaces ✔ Sunlight-readable TFT (640×480) – Adjustable color schemes for any lighting
✅ One tool for ALL conductive materials – From stainless steel to carbon fiber ✅ 25mm penetration – No coating removal needed ✅ 50% lighter than competitors – Climb ladders, work at heights ✅ ASTM E309/E1444 compliant – Meets aerospace/energy standards
